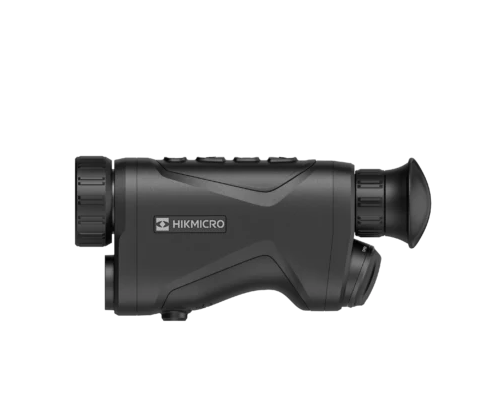

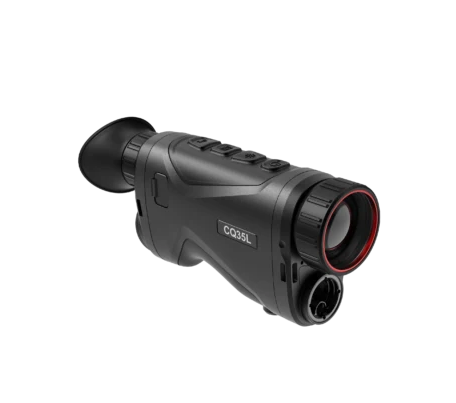

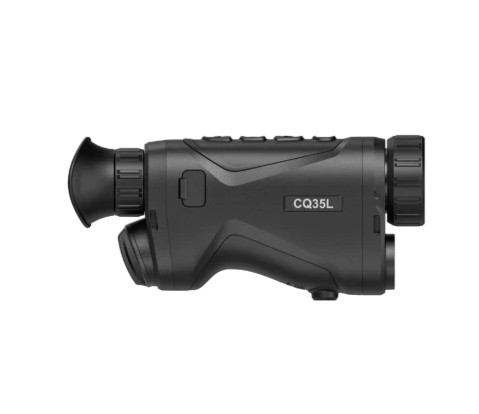

Hikmicro CQ35L Condor 35MM LRF Thermal Monocular
SKU: 308101225
$2,999 AUD
Taxes included.
Shipping calculated at checkout.
Pickup available at Bluey's Outdoors
Usually ready in 1 hour
Description
Description
The HikMicro Condor PRO CQ35L is a handheld thermal imager with a sub 20mK NETD 640×512 pixel thermal sensor, similar to the HikMicro Falcon FQ series. It features a magnesium alloy body, a 1000m Laser Range Finder, and offers a detection range of up to 1800m for man-sized targets. The device has variable magnification from 2.0 to 16.0 and a 1024×768 OLED High Definition display for clear visuals in various conditions.
The HikMicro CONDOR CQ35L thermal imager offers:
- High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
- 640 × 512 resolution with 12 μm detector
- 1024 × 768 resolution 0.39-inch OLED display
- Advanced image processing technology
- Image Pro for enhancing detail recognition
- Zoom Pro for digital zooming without loss of picture quality
- Replaceable and rechargeable Li-ion battery
- Up to 4 hours of continuous operation
- 450g lightweight, with a compact and ergonomic design
Specfications
Specfications
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 640×512 |
| Frame Rate | 50Hz |
| Pixel Interval | 12μm |
| Response Waveband | 8μm to 14μm |
| NETD | Less than 20 mK (@25°C),F#=1.0 |
| Lens (Focal Length) | 35mm, f1.0 |
| Detection Range | 1800m |
| Focus Mode | Focus Ring |
| Field of View(H × V), Degrees / m @100m | 12.5°×10.0°/21.9m×17.5m@100m |
| Min. Focusing Distance | 3.5m |
| Magnification | 2.0×-16.0× (8×) |
| Image Display | |
| Display | 1024×768, 0.39 inch, OLED |
| Contrast Adjustment | Yes |
| Brightness Adjustment | Yes |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 4mm |
| Eye Relief | 15mm |
| Diopter (Range) | -5D to +3D |
| Image Pro | Yes |
| Tone Adjustment | Cold, Warm |
| Zoom Pro | Yes |
| General | |
| Protection Level | IP67 |
| Weight | 400g without battery |
| Dimension | 184.9 mm × 53 mm × 85.4 mm |
| Working Temperature | -30°C to +55°C |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Hotspot | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (64GB) |
| PIP | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Audio Recording | Yes |
| Power Supply | |
| Battery Type | Replaceable and Rechargeable Li-ion |
| Battery Operating Time | 4 hours of continuous running** |
| Type-C Power Supply | 5V DC, 2 A Supports External Power |
| Laser Rangefinder | |
| Safety Class for Laser | Class 1 |
| Wavelength | 905nm |
| Max. Measuring Range | 1000m |
| Measurement Accuracy | ±1m |
| Min. Measuring Range | 10m |
