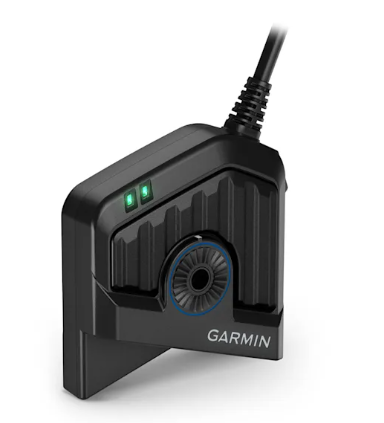

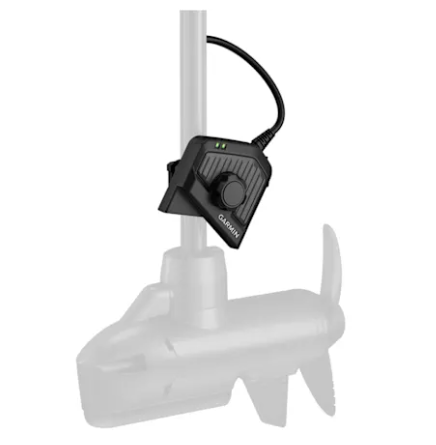

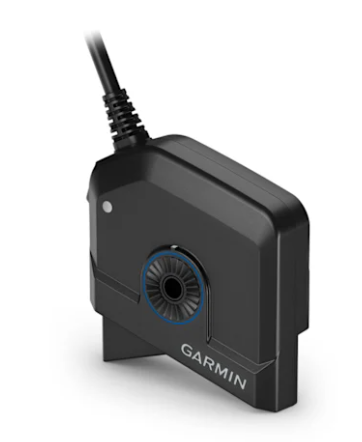

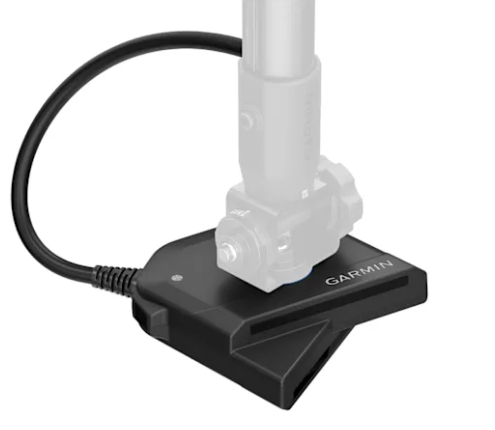

Garmin LiveScope™ 2 HD Transducer LVS42HD
Taxes included.
Shipping calculated at checkout.
Pickup available at Bluey's Outdoors
Usually ready in 1 hour
Description
Description
IN STOCK READY TO SHIP
See more fish, in more detail, in real time. LiveScope 2 HD takes Garmin's live scanning sonar and sharpens it — up to 50% more detail and 20% higher resolution than the original, with reduced artifacts and smoother imaging so you're not second-guessing what's on screen.
What's different:
- Clearer picture- up to 50% more detail, 20% higher resolution, less noise, smoother images
- Simple install- the transducer connects straight to your compatible chartplotter and power source, no black box required
- Real-time reaction-fast processing means you see fish move and react as it happens, so you know exactly when to set the hook
- Smart sensors built in-water detection auto-shuts the sonar when the transducer's out of the water, plus a temperature sensor while it's in
- Wider coverage- improved angles across Forward, Down and Perspective modes, with the adjustable Perspective Mode Mount included
- 15+ colour palettes-pick the palette that shows the detail clearest for your water, when paired with a compatible chartplotter
Features & Specifications
Features & Specifications
| Category | Spec | Details |
|---|---|---|
| General | Transducer beamwidth | Forward: 20° x 165° · Down, Perspective: 20° x 180° |
| Transducer cable length | 5.5 m (18 ft) | |
| Transducer pins | 7 | |
| Dimensions | 13.3 x 13.4 x 4.8 cm (5.2" x 5.3" x 1.9") | |
| Weight | 1.646 kg (3.62 lbs) | |
| Operating temperature | 0°C to 40°C | |
| Electrical | Power input | 10–35 V |
| Power usage | 32 W max | |
| Fuse | 7.5 A | |
| Compass safe distance | 4" | |
| Sonar | Frequency | 850 kHz–1,600 kHz |
| Transmit power | 521 W | |
| Maximum depth | Down & Forward: 38 m (125') | |
| Sonar type | Live | |
| Target separation @ 100' | 32 cm (12.6") | |
| Target separation @ 30' | 14.5 cm (3.8") | |

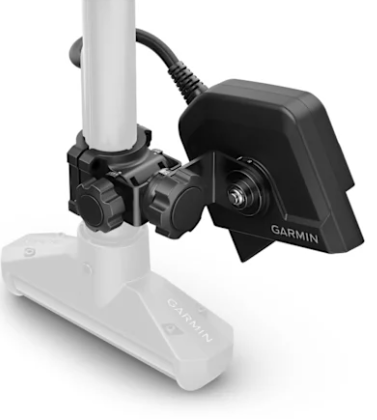

| Perspective Mode Mount | Included (adjustable angles) | |
| Water detection transmit control | Yes | |
| Networking | Garmin Marine Network port | 1 BlueNet (small connector) with GMN1 Adapter |
| Power connection | Yes (2-wire) | |
| Security | Security updates until | at least 7 July 2028 |
