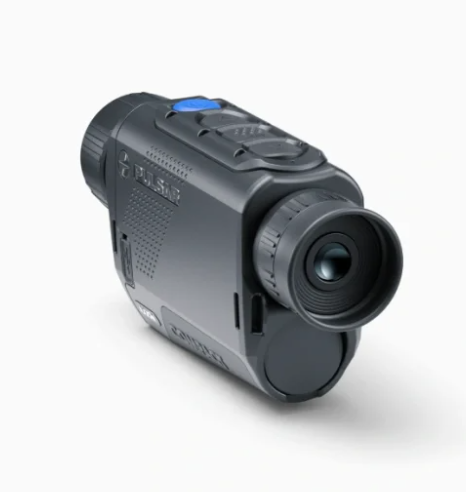

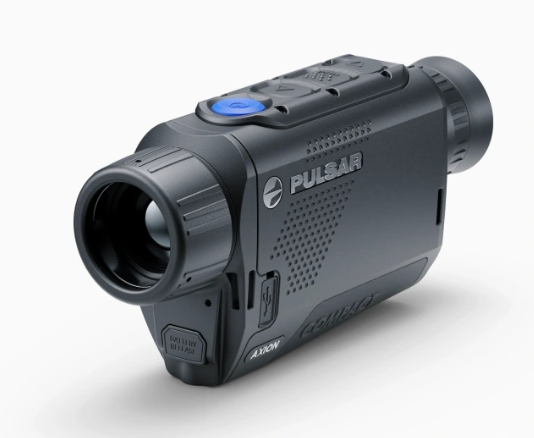

Pulsar Axion Compact XG30 Thermal Monocular 640x480, <25mk, 12um, 1300m
Taxes included.
Shipping calculated at checkout.
Pickup available at Bluey's Outdoors
Usually ready in 1 hour
SKU: 4779022926129
Description
Description
Axion Compact XG30 designed for close range thermal observation in dense vegetation and cluttered outdoor environments.
• Compact and lightweight design
• High resolution thermal sensor
• Wide 14.6 degree field of view
• Built in photo and video recording
• Fully waterproof IPX7 housing
Features & Specifications
Features & Specifications
| Sensor | @ 12 µm 640x480 |
|---|---|
| Objective lens | F30/1.2 |
| Magnification, x | 2 – 16 (x8 zoom) |
| FOV (HxV) degrees / m@100m | – |
| FOV (HxV), degrees | 14.6 x 9.2 |
| FOV (HxV), m@100m | 25.6 x 16.0 |
| Diopter Adjustment, D | – |
| Detection range, m | 1300 |
| Sensor Type | uncooled |
| Sensor Resolution, pixels | 640x480 |
| Sensor Pixel pitch, µm | 12 |
| Sensor NETD, mK | < 40 |
| System NETD, mK | < 25 |
| Frame rate, Hz | 50 |
| Interpupillary distance adjustment, mm | – |
| Eye relief, mm | 14 |
| Display Type | AMOLED |
| Display Resolution, pixels | 640x400 |
| Laser Max. measuring range, m | – |
| Laser Measurement accuracy, m | – |
| Safety class for laser equipment according to IEC 60825-1:2014 | – |
| Laser Wavelength, nm | – |
| Video / photo resultion, pixel | 960x600 |
| Video / photo format | .mp4 / .jpg |
| Build-in memory, GB | 64 |
| WI-FI Wireless protocol | Wi-Fi |
| WI-FI Wireless standard | IEEE 802.11 b/g/n/ac (WPA) |
| WI-FI Frequency, Ghz | 2.4 / 5 |
| Degree of protection IP code (IEC60529) | IPX7 (waterproof) |
| Operating temperature range, °С | -20 – +40 |
| Mount type | 1/4″ socket |
| Compatible mounts | tripods |
| Supported application | Stream Vision 2 |
| Output voltage, V | 3.0 – 4.2 |
| Battery type | Li-Ion Battery Pack APS 3 |
| Capacity, mAh | 3200 |
| Operating time on battery pack, h at t=22°С | 7 |
| External power supply, V | 5 (USB Type C) |
| Body material | Magnesium alloy |
| Dimensions, mm | 144x41x69 |
| Weight, kg | 0.25 (without battery) |
| Model | XG30 |
